XGBoost for Binary and Multi-Class Classification in Python
Want to share your content on python-bloggers? click here.
Today we continue the saga on gradient boosting with a down-to-Earth tutorial on the essentials of solving classification problems with XGBoost. We’ll run through two examples: one for binary classification and another for multi-class classification. In both cases I’ll show you how to train XGBoost models using either the scikit-learn interface or the native xgboost training API. Once trained, we’ll evaluate the models with validation data then inspect them with feature importance and partial dependence plots. You can use the XGBoost classification notebook in my ds-templates repository to follow along with your own dataset.
Preparing Data for XGBoost Classifier
Our dataset must satisfy two requirements to be used in an XGBoost classifier. First all feature data must be numeric—no strings and no datetimes; if you have non-numeric features, you need to transform your feature data. Second, the target must be integer encoded using for binary targets and
for multiclass targets. Note that if your data is encoded to positive integers (no 0 class) XGBoost will throw potentially cryptic errors. You can use the scikit-learn
LabelEncoder (which we’ll do below) to generate a valid target encoding.
XGBoost Training APIs
The xgboost python library offers two API’s for training classification models: the native train function and a wrapper class called XGBClassifier, which offers an API consistent with the scikit-learn universe. I’ll show you how to use both approaches in the examples below, but if you’re planning to use other utilities from scikit-learn, you might find the XGBClassifier approach to be more convenient, since the trained model object will generally play nice with sklearn functionality.
Binary Classification Example
Breast Cancer Wisconsin Dataset
We’ll demonstrate binary classification in XGBoost using the breast cancer wisconsin data, one of scikit-learn’s built-in toy datasets. This is a tiny dataset with 569 observations of 30 features and a binary target representing whether samples are malignant or benign..
import numpy as np import pandas as pd import matplotlib.pyplot as plt from sklearn import datasets import xgboost as xgb dbunch = datasets.load_breast_cancer(as_frame=True) df = dbunch.frame features = dbunch.feature_names target_names = dbunch.target_names target = 'target' df.info()
<class 'pandas.core.frame.DataFrame'> RangeIndex: 569 entries, 0 to 568 Data columns (total 31 columns): # Column Non-Null Count Dtype --- ------ -------------- ----- 0 mean radius 569 non-null float64 1 mean texture 569 non-null float64 2 mean perimeter 569 non-null float64 3 mean area 569 non-null float64 4 mean smoothness 569 non-null float64 5 mean compactness 569 non-null float64 6 mean concavity 569 non-null float64 7 mean concave points 569 non-null float64 8 mean symmetry 569 non-null float64 9 mean fractal dimension 569 non-null float64 10 radius error 569 non-null float64 11 texture error 569 non-null float64 12 perimeter error 569 non-null float64 13 area error 569 non-null float64 14 smoothness error 569 non-null float64 15 compactness error 569 non-null float64 16 concavity error 569 non-null float64 17 concave points error 569 non-null float64 18 symmetry error 569 non-null float64 19 fractal dimension error 569 non-null float64 20 worst radius 569 non-null float64 21 worst texture 569 non-null float64 22 worst perimeter 569 non-null float64 23 worst area 569 non-null float64 24 worst smoothness 569 non-null float64 25 worst compactness 569 non-null float64 26 worst concavity 569 non-null float64 27 worst concave points 569 non-null float64 28 worst symmetry 569 non-null float64 29 worst fractal dimension 569 non-null float64 30 target 569 non-null int64 dtypes: float64(30), int64(1) memory usage: 137.9 KB
In this dataset, the features are all numeric, so no need to do preprocessing before passing to XGBoost. Below we’ll have a look at the target to ensure it’s encoded in and to check the class balance.
print(df[target].unique()) print(target_names)
[0 1] ['malignant' 'benign']
df.target.value_counts().sort_index().plot.bar()
plt.xlabel('target')
plt.ylabel('count');
Next We randomly split data into train and validation sets.
from sklearn.model_selection import train_test_split n_valid = 50 train_df, valid_df = train_test_split(df, test_size=n_valid, random_state=42) train_df.shape, valid_df.shape
((519, 31), (50, 31))
Training with the train function
We need to set a couple of model parameters, most notably objective, which should be set to binary:logistic for binary classification. I also prefer to explicitly set tree_method to something other than its default of auto; usually I’ll start with exact on small datasets or approx on larger ones. Note also that The train function expects to receive data as DMatrix objects, not pandas dataframes, so we need to create dense matrix objects as well.
params = {
'tree_method': 'exact',
'objective': 'binary:logistic',
}
num_boost_round = 50
dtrain = xgb.DMatrix(label=train_df[target], data=train_df[features])
dvalid = xgb.DMatrix(label=valid_df[target], data=valid_df[features])
model = xgb.train(params=params, dtrain=dtrain, num_boost_round=num_boost_round,
evals=[(dtrain, 'train'), (dvalid, 'valid')],
verbose_eval=10)[0] train-logloss:0.46232 valid-logloss:0.49033 [10] train-logloss:0.04394 valid-logloss:0.13434 [20] train-logloss:0.01515 valid-logloss:0.12193 [30] train-logloss:0.00995 valid-logloss:0.11988 [40] train-logloss:0.00766 valid-logloss:0.12416 [49] train-logloss:0.00657 valid-logloss:0.12799
Training with XGBClassifier
The XGBClassifier takes dataframes or numpy arrays as input, so this time we don’t need to create those dense matrix objects.
params = {
'tree_method': 'exact',
'objective': 'binary:logistic',
}
num_boost_round = 50
clf = xgb.XGBClassifier(n_estimators=num_boost_round, **params)
clf.fit(train_df[features], train_df[target],
eval_set=[(train_df[features], train_df[target]), (valid_df[features], valid_df[target])],
verbose=10);[0] validation_0-logloss:0.46232 validation_1-logloss:0.49033 [10] validation_0-logloss:0.04394 validation_1-logloss:0.13434 [20] validation_0-logloss:0.01515 validation_1-logloss:0.12193 [30] validation_0-logloss:0.00995 validation_1-logloss:0.11988 [40] validation_0-logloss:0.00766 validation_1-logloss:0.12416 [49] validation_0-logloss:0.00657 validation_1-logloss:0.12799
Evaluating the Model
We’ll use the sklearn.metrics module to evaluate model performance on the held-out validation set. Have a look at the scikit-learn metrics for classification for examples of other metrics to use.
One thing to watch out for when computing metrics is the difference between the actual labels (usually called y_true), the model’s predicted labels (usually called y_pred), and the models predicted probabilities (usually called y_score). If you’re using the XGBClassifier wrapper, you can get predicted labels with the predict method and predicted probabilities with the predict_proba method. Also note that whereas predict returns a vector of size (num data), predict_proba returns a vector of size (num data, num classes); thus for binary classification, we’ll take just the second column of the array which gives the probability of class 1.
y_true = valid_df[target] y_pred = clf.predict(valid_df[features]) y_score = clf.predict_proba(valid_df[features])[:,1]
Probably the simplest classification metric is accuracy, the proportion of labels we predicted correctly.
from sklearn import metrics metrics.accuracy_score(y_true, y_pred)
0.96
We can generate a classification report with several different metrics at once.
print(metrics.classification_report(y_true, y_pred, target_names=target_names))
precision recall f1-score support
malignant 0.93 0.93 0.93 15
benign 0.97 0.97 0.97 35
accuracy 0.96 50
macro avg 0.95 0.95 0.95 50
weighted avg 0.96 0.96 0.96 50
And we can compute the AUC, a popular classification metric based on the ROC curve, which depends on the predicted probability rather than the predicted labels.
metrics.roc_auc_score(y_true, y_score)
0.9885714285714287
Feature Importance
Because of the limitations of the built-in XGBoost feature importance metrics I recommend that you use either permutation feature importance or perhaps SHAP feature importance.
Here we’ll compute the permutation feature importance, which tells us by how much the model’s performance changes when we scramble a particular feature’s values at prediction time. This reflects how much the model relies on each feature when making predictions.
from sklearn.inspection import permutation_importance
from sklearn.metrics import make_scorer
scorer = make_scorer(metrics.log_loss, greater_is_better=False, needs_proba=True)
permu_imp = permutation_importance(clf, valid_df[features], valid_df[target],
n_repeats=30, random_state=0, scoring=scorer)importances_permutation = pd.Series(permu_imp['importances_mean'], index=features)
importances_permutation.sort_values(ascending=True)[-10:].plot.barh()
plt.title('Permutation Importance on Out-of-Sample Set')
plt.xlabel('change in log likelihood');
Partial Dependence
A partial dependence plot (PDP) is a representation of the dependence between the model output and one or more feature variables. In binary classification, the model output is the probability of the so-called positive class, i.e. the class with encoded label 1, which corresponds to probability of “benign” in this example.. We can loosely interpret the partial dependence as showing how the expected value of the target changes across values of a particular feature, marginalizing over other features. I say “loosely” because it comes with caveats, a particularly serious one being that correlation among features tends to invalidate the above interpretation. Anyway, we can treat PDPs as useful heuristics for getting a sense of how a model thinks the target changes with feature values.
from sklearn.inspection import PartialDependenceDisplay
PartialDependenceDisplay.from_estimator(clf,
valid_df[features],
['worst area', 'area error', 'mean area']);
Multi-Class Classification Example
Forest Cover Type Dataset
We’ll illustrate multi-class classification using the scikit-learn forest cover type dataset, which has around 580k observations of 54 features and a target with 7 classes.
dbunch = datasets.fetch_covtype(as_frame=True) df = dbunch.frame features = dbunch.feature_names df.info()
<class 'pandas.core.frame.DataFrame'> RangeIndex: 581012 entries, 0 to 581011 Data columns (total 55 columns): # Column Non-Null Count Dtype --- ------ -------------- ----- 0 Elevation 581012 non-null float64 1 Aspect 581012 non-null float64 2 Slope 581012 non-null float64 3 Horizontal_Distance_To_Hydrology 581012 non-null float64 4 Vertical_Distance_To_Hydrology 581012 non-null float64 5 Horizontal_Distance_To_Roadways 581012 non-null float64 6 Hillshade_9am 581012 non-null float64 7 Hillshade_Noon 581012 non-null float64 8 Hillshade_3pm 581012 non-null float64 9 Horizontal_Distance_To_Fire_Points 581012 non-null float64 10 Wilderness_Area_0 581012 non-null float64 11 Wilderness_Area_1 581012 non-null float64 12 Wilderness_Area_2 581012 non-null float64 13 Wilderness_Area_3 581012 non-null float64 14 Soil_Type_0 581012 non-null float64 15 Soil_Type_1 581012 non-null float64 16 Soil_Type_2 581012 non-null float64 17 Soil_Type_3 581012 non-null float64 18 Soil_Type_4 581012 non-null float64 19 Soil_Type_5 581012 non-null float64 20 Soil_Type_6 581012 non-null float64 21 Soil_Type_7 581012 non-null float64 22 Soil_Type_8 581012 non-null float64 23 Soil_Type_9 581012 non-null float64 24 Soil_Type_10 581012 non-null float64 25 Soil_Type_11 581012 non-null float64 26 Soil_Type_12 581012 non-null float64 27 Soil_Type_13 581012 non-null float64 28 Soil_Type_14 581012 non-null float64 29 Soil_Type_15 581012 non-null float64 30 Soil_Type_16 581012 non-null float64 31 Soil_Type_17 581012 non-null float64 32 Soil_Type_18 581012 non-null float64 33 Soil_Type_19 581012 non-null float64 34 Soil_Type_20 581012 non-null float64 35 Soil_Type_21 581012 non-null float64 36 Soil_Type_22 581012 non-null float64 37 Soil_Type_23 581012 non-null float64 38 Soil_Type_24 581012 non-null float64 39 Soil_Type_25 581012 non-null float64 40 Soil_Type_26 581012 non-null float64 41 Soil_Type_27 581012 non-null float64 42 Soil_Type_28 581012 non-null float64 43 Soil_Type_29 581012 non-null float64 44 Soil_Type_30 581012 non-null float64 45 Soil_Type_31 581012 non-null float64 46 Soil_Type_32 581012 non-null float64 47 Soil_Type_33 581012 non-null float64 48 Soil_Type_34 581012 non-null float64 49 Soil_Type_35 581012 non-null float64 50 Soil_Type_36 581012 non-null float64 51 Soil_Type_37 581012 non-null float64 52 Soil_Type_38 581012 non-null float64 53 Soil_Type_39 581012 non-null float64 54 Cover_Type 581012 non-null int32 dtypes: float64(54), int32(1) memory usage: 241.6 MB
Here again the features are all numeric, so we don’t need to further preprocess them. Let’s have a look at the target.
df['Cover_Type'].value_counts().sort_index().plot.bar()
plt.xlabel('cover type')
plt.ylabel('count');
For multi-class classification, our target variable must take values in . However, from the histogram of the cover type above, we see that it takes values in
. To fix this we can use the scikit-learn label encoder to create a valid target column.
from sklearn.preprocessing import LabelEncoder target = 'encoded' enc = LabelEncoder() df[target] = enc.fit_transform(df['Cover_Type']) print(np.sort(df[target].unique()))
[0 1 2 3 4 5 6]
Then we can create training and validation sets.
n_valid = 20000 train_df, valid_df = train_test_split(df, test_size=n_valid, random_state=42) train_df.shape, valid_df.shape
((561012, 56), (20000, 56))
Training with the train function
If you’re training with the train function, multi-class classification can be done with two objectives: multi:softmax and multi:softprob. Both use the same loss function—negative multinomial log likelihood—but the softmax option produces a trained Booster object whose predict method returns a 1d array of predicted labels, whereas the softprob option produces a trained Booster object whose predict method returns a 2d array of predicted probabilities. In either case, you also need to explicitly tell XGBoost how many classes the target has with the num_class parameter.
params = {
'tree_method': 'approx',
'objective': 'multi:softprob',
'num_class': df[target].nunique()
}
num_boost_round = 10
dtrain = xgb.DMatrix(label=train_df[target], data=train_df[features])
dvalid = xgb.DMatrix(label=valid_df[target], data=valid_df[features])
model = xgb.train(params=params, dtrain=dtrain, num_boost_round=num_boost_round,
evals=[(dtrain, 'train'), (dvalid, 'valid')],
verbose_eval=2)[0] train-mlogloss:1.42032 valid-mlogloss:1.42366 [2] train-mlogloss:1.00541 valid-mlogloss:1.00963 [4] train-mlogloss:0.80557 valid-mlogloss:0.81109 [6] train-mlogloss:0.69432 valid-mlogloss:0.70085 [8] train-mlogloss:0.62653 valid-mlogloss:0.63350 [9] train-mlogloss:0.60111 valid-mlogloss:0.60794
Training with XGBClassifier
In multi-class classification, I think the scikit-learn XGBClassifier wrapper is quite a bit more convenient than the native train function. You can set the objective parameter to multi:softprob, and XGBClassifier.fit will produce a model having both predict and predict_proba methods. Also there is no need to explicitly set the number of classes in the target and no need to create the DMatrix objects.
params = {
'tree_method': 'approx',
'objective': 'multi:softprob',
}
num_boost_round = 10
clf = xgb.XGBClassifier(n_estimators=num_boost_round, **params)
clf.fit(train_df[features], train_df[target],
eval_set=[(train_df[features], train_df[target]), (valid_df[features], valid_df[target])],
verbose=2);[0] validation_0-mlogloss:1.42032 validation_1-mlogloss:1.42366 [2] validation_0-mlogloss:1.00541 validation_1-mlogloss:1.00963 [4] validation_0-mlogloss:0.80557 validation_1-mlogloss:0.81109 [6] validation_0-mlogloss:0.69432 validation_1-mlogloss:0.70085 [8] validation_0-mlogloss:0.62653 validation_1-mlogloss:0.63350 [9] validation_0-mlogloss:0.60111 validation_1-mlogloss:0.60794
Evaluating the Model
This time, we’ll keep the entire 2d array of predicted probabilities in y_score.
y_true = valid_df[target] y_pred = clf.predict(valid_df[features]) y_score = clf.predict_proba(valid_df[features]) y_true.shape, y_pred.shape, y_score.shape
((20000,), (20000,), (20000, 7))
metrics.accuracy_score(y_true, y_pred)
0.77425
print(metrics.classification_report(y_true, y_pred))
precision recall f1-score support
0 0.77 0.74 0.75 7365
1 0.78 0.84 0.81 9725
2 0.75 0.85 0.80 1207
3 0.82 0.78 0.80 85
4 0.93 0.26 0.40 317
5 0.76 0.31 0.44 627
6 0.88 0.68 0.77 674
accuracy 0.77 20000
macro avg 0.81 0.64 0.68 20000
weighted avg 0.78 0.77 0.77 20000
Some binary classification metrics, like AUC, can be extended to the multi-class setting by computing the metric for each class, then averaging in some way to get an overall score. The details are controlled by the average and multi_class parameters, which are described in the documentation.
metrics.roc_auc_score(y_true, y_score, average='weighted', multi_class='ovr')
0.9129422094408693
Feature Importance

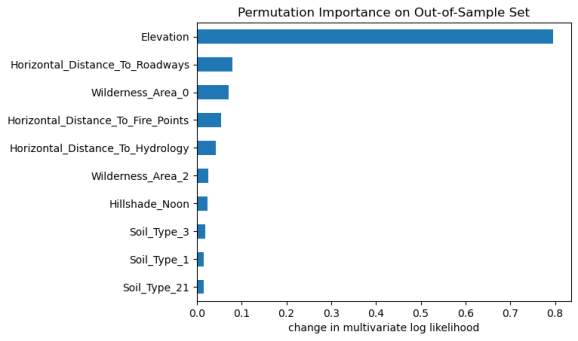

We can compute permutation feature importance with exactly the same code that we used for the binary classifier.
scorer = make_scorer(metrics.log_loss, greater_is_better=False, needs_proba=True)
permu_imp = permutation_importance(clf, valid_df[features], valid_df[target],
n_repeats=30, random_state=0, scoring=scorer)importances_permutation = pd.Series(permu_imp['importances_mean'], index=features)
importances_permutation.sort_values(ascending=True)[-10:].plot.barh()
plt.title('Permutation Importance on Out-of-Sample Set')
plt.xlabel('change in multivariate log likelihood');
Partial Dependence
Recall that partial dependence reflects how the expected model output changes with a particular feature. In the multi-class setting, the model has multiple outputs—one probability for each class—so we need to choose which class probability to show in the plots. We choose the target class with the target parameter; be sure to pass in the encoded value, e.g. we need to use the label encoder to transform a raw class label back into the encoded value. Here we’ll examine partial dependence for the probability of cover type 3.
PartialDependenceDisplay.from_estimator(clf,
X=valid_df[features],
features=['Elevation', 'Horizontal_Distance_To_Roadways'],
target=enc.transform([3])[0]);
Wrapping Up
Well, for me, those are really the minimal nuts and bolts one needs to get XGBoost models working on classification problems. If you dig this tutorial, or if you have additional insights into using XGBoost to solve classification problems, let me know about it down in the comments!
Go Deeper
If you’re feeling like Alice, and you want to go tumbling down the rabbit hole, might I recommend checking out some of the following:
- XGBoost Explained – for a deep dive into the math
- XGBoost from Scratch – to see how to implement all those equations in code
- Multi-Class Gradient Boosting from Scratch – to fully grok the multi-class gradient boosting algorithm
